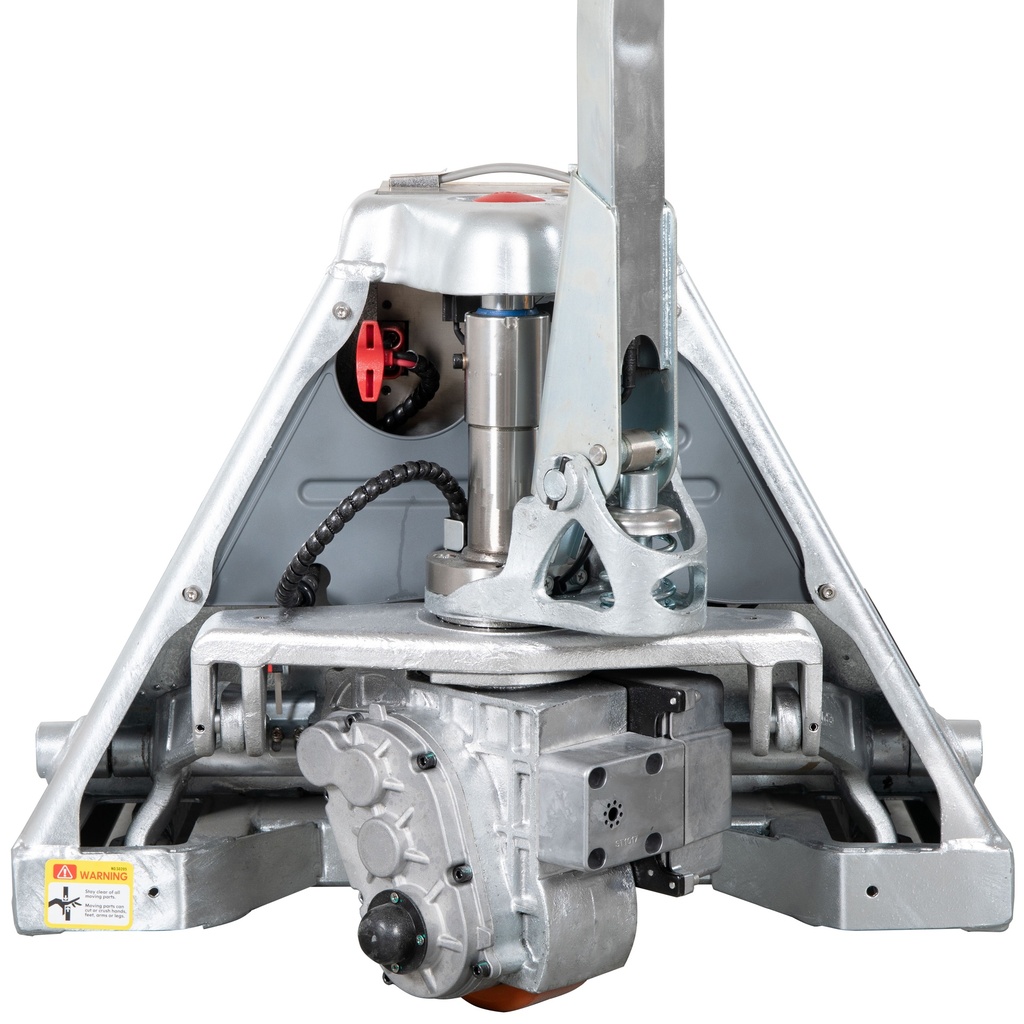

Mammuth electric pallet truck, galvanized, 2000 kg

Art. no.:
MDP-PT20ESG
EAN:
8720028145843
Manufacturer:
  • Galvanized chassis and forks
  • Fully electric
  • 2000 kg lifting capacity
  • Removable lithium battery
  • Stainless steel bearing and hydraulic cylinder
 1.750,00excl. BTW
 2.117,50incl. BTW
Delivery time:
Product Quote

Product Information

Pluses and minuses

Geëgalvaniseerd voor betere corrosiebescherming
Elektrische aandrijving vermindert fysieke belasting
Maximaal 2000 kg draagvermogen
Accuduur beperkt bij intensief gebruik
Hoger prijssegment dan handpalletwagens

Description

The PT20ESG Mammuth electric pallet truck, galvanized, 2000 kg, is suitable for use in cold storage, food processing, and damp outdoor areas. Full galvanization protects this electric pallet truck against corrosion at temperatures down to -18 °C.

Operation is via the tiller, with electric driving, lifting, and lowering, reducing physical effort during pallet transport. A brushless motor is used to limit motor maintenance, while polyurethane wheels ensure good traction on slippery surfaces.

The removable lithium battery has a long service life and is charged with the supplied 230 V charger. The battery status can be read on the indicator, with a signal when the battery voltage is low, so that use and charging times can be better planned.

Several components are additionally shielded for use in damp and cold areas. Stainless steel bearings limit damage from moisture and the hydraulic cylinder is designed for use in wet conditions. IP67 brakes and a shielded control system are more resistant to splashing and condensation when moving between temperature zones.

Key features:

  • Galvanized chassis and forks

Suitable for cold and frozen storage, foodstuffs, and chemical storage down to -18 °C.

  • Fully electric

Easy to use when driving, lifting, and lowering via the controls

  • 2000 kg lifting capacity

Sufficient load capacity for loaded pallets.

  • Removable lithium battery

Long service life and quick battery replacement.

  • Stainless steel bearing and hydraulic cylinder

Better protection against moisture and cold operating conditions.

Areas of application PT20ESG Mammuth electric pallet truck, galvanized, 2000 kg

  • Internal transport of pallets up to 2000 kg in warehouses

  • Logistical movement of heavy goods

  • Loading and unloading work in distribution centers

  • Workshops with demanding environments

  • Efficient pallet management in production halls

  • Transport in wet or corrosive areas thanks to galvanized frame

Technical data

Weight117,0 kg
Dimensions154 × 55 × 125,5 cm
Lifting capacity

2000 kg

Lifting height min.

84 mm

Max. lifting height

200mm

Battery type

lithium-ion

Battery voltage

48V/15Ah

Nutrition

230V

Rijmotorvermogen

1 kW

Hefmotorvermogen

0.8 kW

Lifting speed under load

18 mm/sec

Lifting speed unloaded

23 mm/sec

Down speed loaded

56 mm/sec

Down speed unloaded

46 mm/sec

Travel speed under load

4 km/h

Travel speed without load

4.5 km/h

Max. slope loaded

6 %

Max. slope unloaded

20 %

Turning circle

1353 mm

Fork l x w x h

1150 x 160 x 58 mm

Overall fork width

550 mm

Material wheels

Polyurethane

Diameter steering wheel

140 mm

Diam. load wheel

80 mm

Brake type

Electromagnetic
